Mechanical Sauna Controller
Sauna Timer for 110-240 VAC Sauna Heaters
Ideal for Infrared sauna panels

Ideal sauna timer for all sauna heaters! Works with 110 VAC as well as 220-240 VAC sauna heaters. Great for Infared sauna heater controller.

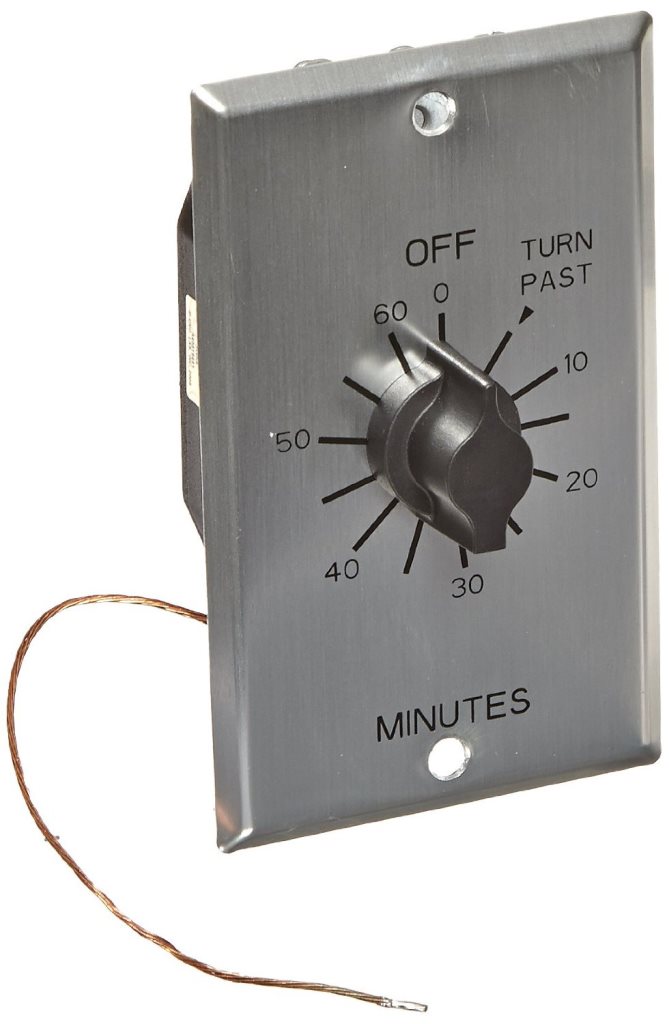

This NSi Industries Tork C460M spring-wound timed switch accepts 120/277 VAC input and its DPST output contacts can activate a 20 amp load (at 125V), 10 amp load (at 250/277V), 1 hp motor (125V) or 2 hp motor (250V). The timer's twist knob sets time from one minute to one hour with an automatic Off. The double-pole single-throw (DPST) contacts are housed within a single-gang in-wall switch with metal cover plate that is suitable for indoor use and is Underwriter Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance. This switch is suitable for controlling lighting and fans and Infrared sauna heaters under 20 Amps (voltage dependent).
Specifications
Switch Type |
Spring wound timer with twist knob |
Input power supply |
120/277 VAC, 50/60 Hz |
Output contacts |
DPST contacts, 20 amps at 125VAC load rating, 10 amps at 250VAC load rating, 1 hp motor at 125VAC load rating, 2 hp motor at 250VAC load rating |
On/off control |
One minute to one hour with auto Off |
Enclosure |
Single-gang in-wall, indoor use, metal cover plate |
Terminal wire size range |
#12 AWG (American wire gauge) |
Operating temperature range |
32 to +122 degrees F (0 to +50 degrees C) |
Standards met |
UL Listed, CSA certified |
Ratings
50/60Hz |
125VAC |
250VAC |
277VAC |
Inductive/Resistive |
20A |
10A |
10A |
Tungsten |
7A |
- |
- |
Motor |
1 HP |
2 HP |
- |
